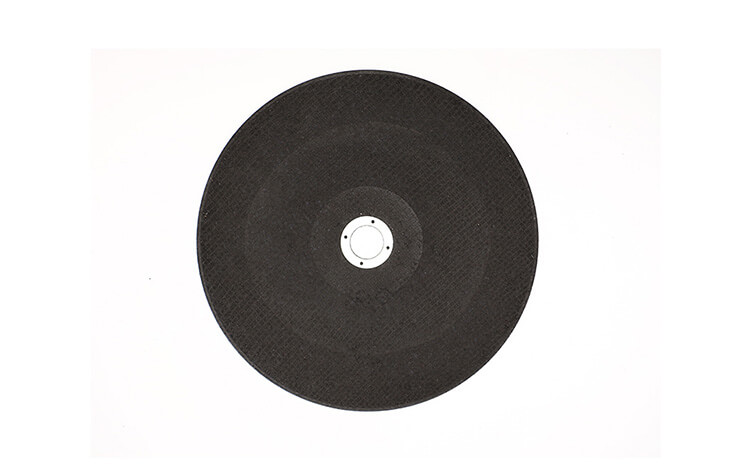

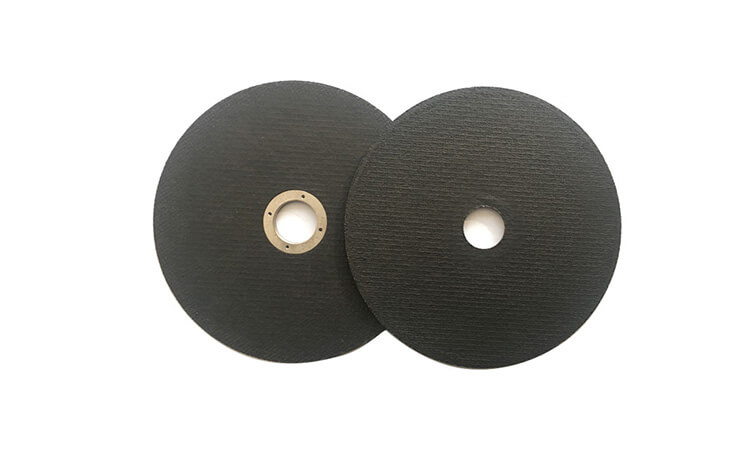

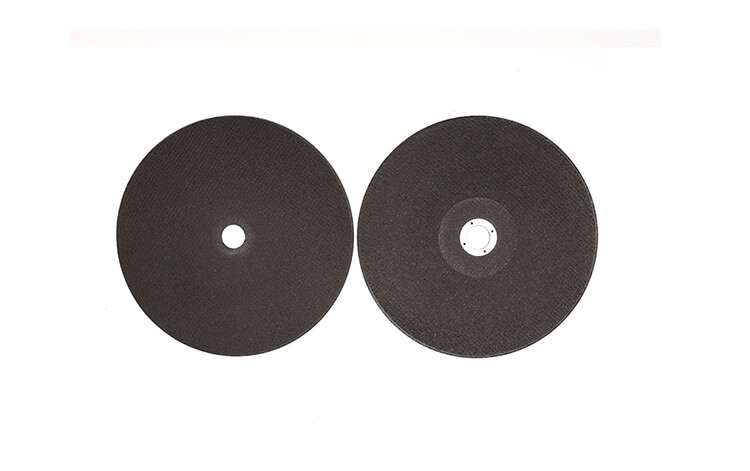

Stainless Steel Cutting Discs

Specification

Diameter: 4-14 inch Thickness: 1-3.2 mm Bore: 16mm, 22mm, 22.5mm Type: T41
Structure: Resinoid, fiberglass reinforced

Features

Resin Cutting Disc is a reliable choice for working on stainless steel.

Stainless steel cutting discs comply with the maximum safety requirements, such as ISO9001, EN 12413.

Suitable for

• The cutting disc is made of aluminium oxide specifically designed for use with stainless steel.

Super Thin Cutting disc
Size	Max.RPM
INCH	MM	72m/s	80m/s
4×1/25×5/8	100×1.0x16	13700	15200
4×3/64×5/8	100×1.2×16	13700	15200
4-1/2×1/25×7/8	115×1.0x22	12000	13300
4-1/2×3/64×7/8	115×1.2×22	12000	13300
4-1/2×1/16×7/8	115×1.2×22	12000	13300
5×1/25×7/8	125×1.0x22	11000	12200
5×3/64×7/8	125×1.2×22	11000	12200
5×1/16×7/8	125×1.6×22	11000	12200
6×1/16×7/8	150×1.6×22	9100	10200
7×3/64×7/8	180×1.2×22	7600	8500
7×1/16×7/8	180×1.6×22	7600	8500
7×1/16×7/8	180×1.8×22	7600	8500
9×5/64×7/8	230×2.0x22	6000	6600
14×1/8×1 1/4	355×2.5×25.4	4400	3900
14×3/32×1	355×3.2×25.4	4400	3900
Note: Size and colour can be customized.
