MCD Powder

Monocrystalline Diamond Powder(MDP)

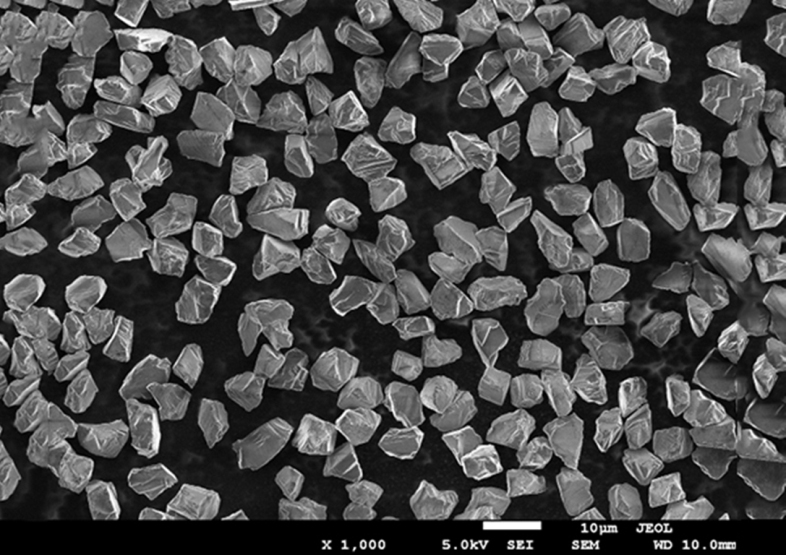

Monocrystalline diamond powder is produced by high-pressure and high-temperature method. The diamond particles feature an oriented crystal structure with parallel-running cleavage planes.

For diamond tools, particle fracturing provides a self-sharpening mechanism and thus increases tool life. It is a popular choice for precision grinding, lapping and polishing of various materials.

Dimension	D10(um)	D50(um)	D95(um)	D100(um)
D20-30	＞15.00	18.80-21.60	＜30.000	＜52.330
D10-20	＞10.00	13.00-14.00	＜22.500	＜37.000
D8-16	＞6.70	8.50-10.00	＜15.500	＜31.000
D6-12	＞5.60	7.30-7.80	＜12.000	＜22.000
D5-10	＞4.20	5.50-6.04	＜10.000	＜15.560
D4-8	＞3.69	4.70-5.23	＜8.500	＜13.080
D4-6	＞2.75	3.50-3.90	＜6.000	＜10.000
D2-5	＞2.35	3.15-3.25	＜5.500	＜8.482
D2-4	＞1.73	2.40-2.65	＜4.500	＜7.778
D1.5-3	＞1.16	1.60-1.74	＜3.500	＜5.044
D1-2	＞1.05	1.40-1.50	＜2.700	＜3.889
D0-2	＞0.75	0.91-1.04	＜1.860	＜2.522
D0-1	＞0.53	0.60-0.70	＜0.980	＜1.500
D0-0.5	＞0.32	0.45-0.55	＜0.880	＜1.300

[Applications]
Gem Stone, Silicon Carbide Wafer, Ceramic Parts, Watch Dial, Metallography, Sapphire Wafer, ZnSe Wafer, Metal Mold.
