Coated Abrasives
Lapping Film

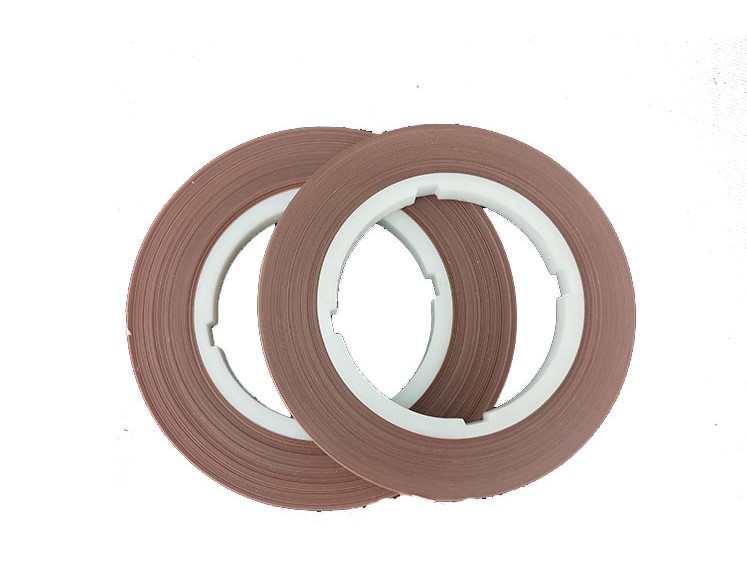

Fuhren Lapping Film is formed by binding precisely graded minerals to a water resistant and high strength 3mil and 5mil polyester film. It provides a uniform, consistent finish, available in diamond, silicon carbide, aluminum oxide, cerium oxide and silicon oxide in 0.5-60 microns, with or without P
Yêu cầu báo giá & tư vấn kỹ thuật
Liên hệ để nhận thông số chi tiết, độ hạt sẵn có và giá theo số lượng.
Mô tả sản phẩm

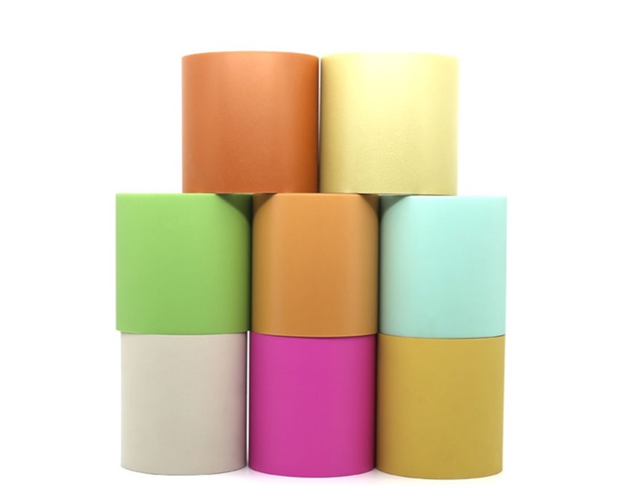

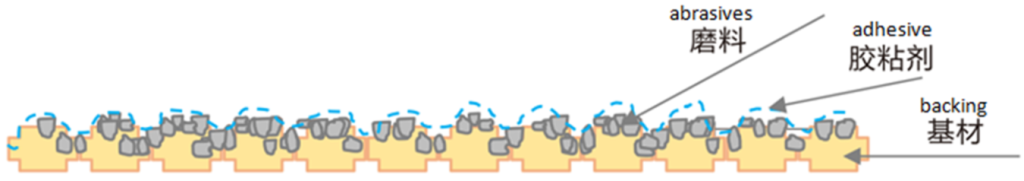

Fuhren Lapping Film is formed by binding precisely graded minerals to a water resistant and high strength 3mil and 5mil polyester film.
It provides a uniform, consistent finish, available in diamond, silicon carbide, aluminum oxide, cerium oxide and silicon oxide in 0.5-60 microns, with or without PSA(Pressure Sensitive Adhesive) backing.
[Types]
Diamond Lapping Film
Aluminum Oxide Lapping Film
Silicon Carbide Lapping Film
Silicon Oxide Lapping Film
Cerium Oxide Lapping Film
[Specifications]
|
Micron |
60 |
45 |
40 |
30 |
20 |
16 |
15 |
12 |
9 |
6 |
5 |
3 |
1 |
1 |
≤0.5 |
|
|
Mesh |
240 |
325 |
400 |
600 |
800 |
1,000 |
1,200 |
1,500 |
2,000 |
2,500 |
3,000 |
4,000 |
8,000 |
10,000 |
10,000 |
|
|
Diamond |
– |
– |
– |
– |
– |
– |
||||||||||
|
Al₂O₃ |
– |
– |
– |
– |
– |
– |
– |
|||||||||
|
SiC |
– |
– |
– |
– |
– |
– |
– |
– |
– |
|||||||
|
CeO2 |
– |
– |
– |
– |
– |
– |
– |
– |
– |
– |
– |
– |
– |
– |
||
|
SiO₂ |
– |
– |
– |
– |
– |
– |
– |
– |
– |
– |
– |
– |
– |
– |
||
|
Backing Thickness |
125um(5mil), 75um(3mil) |
|||||||||||||||
|
Specifications |

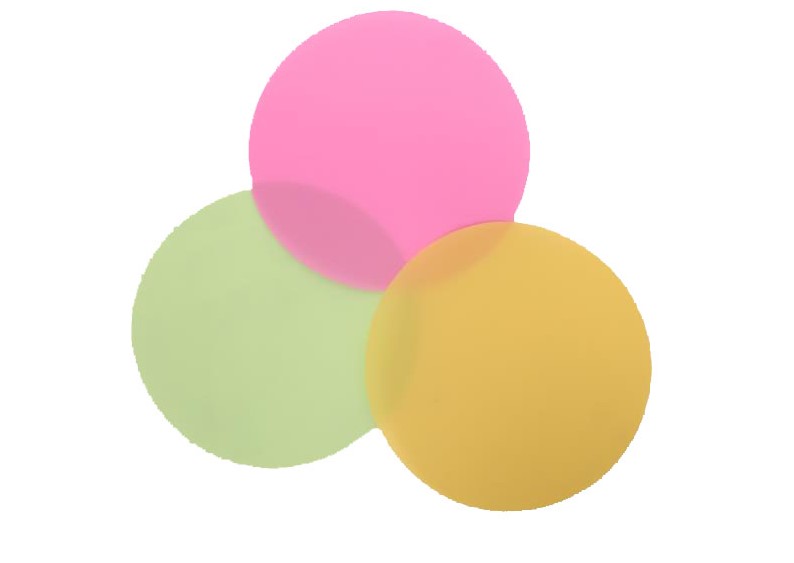

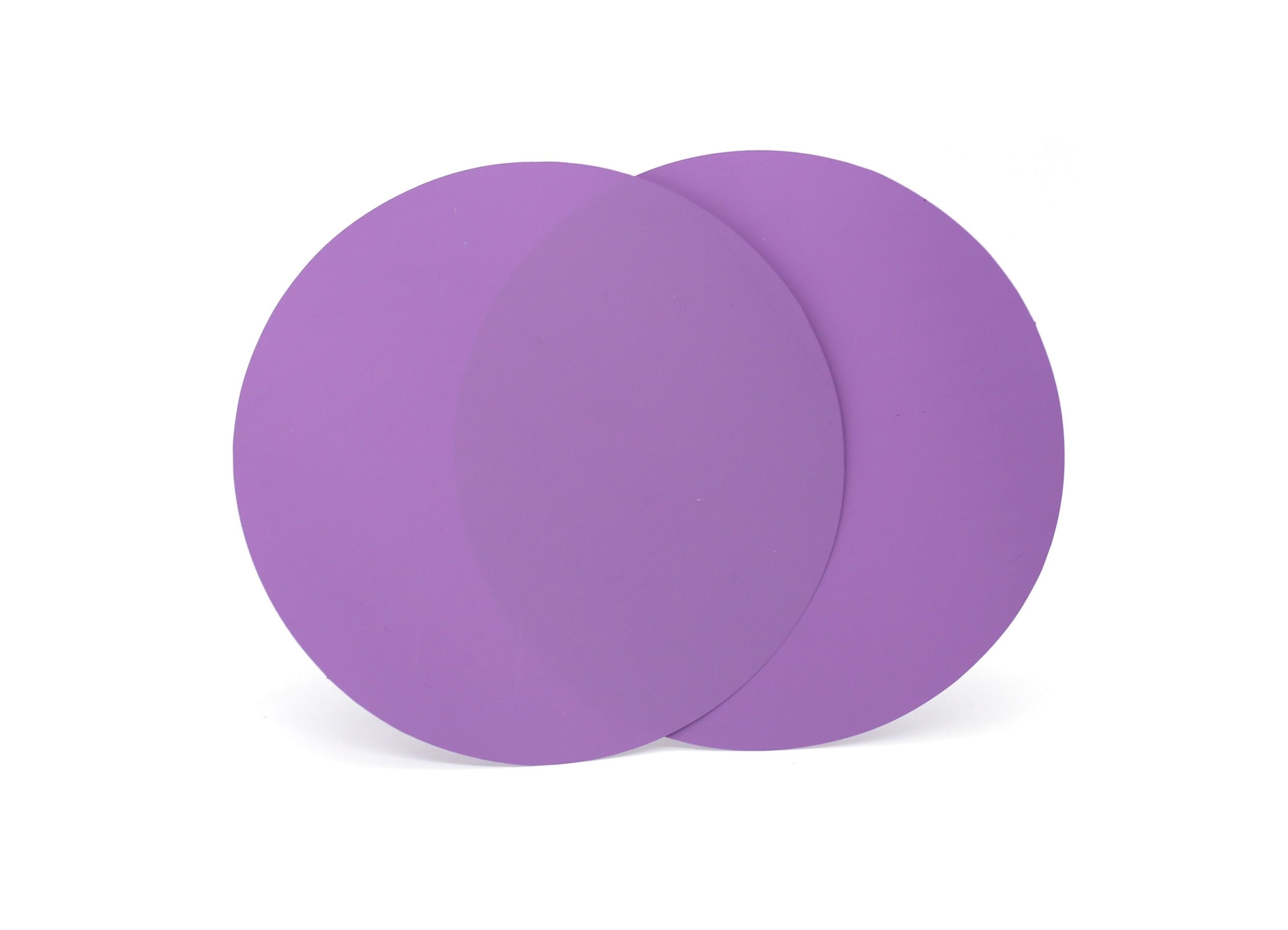

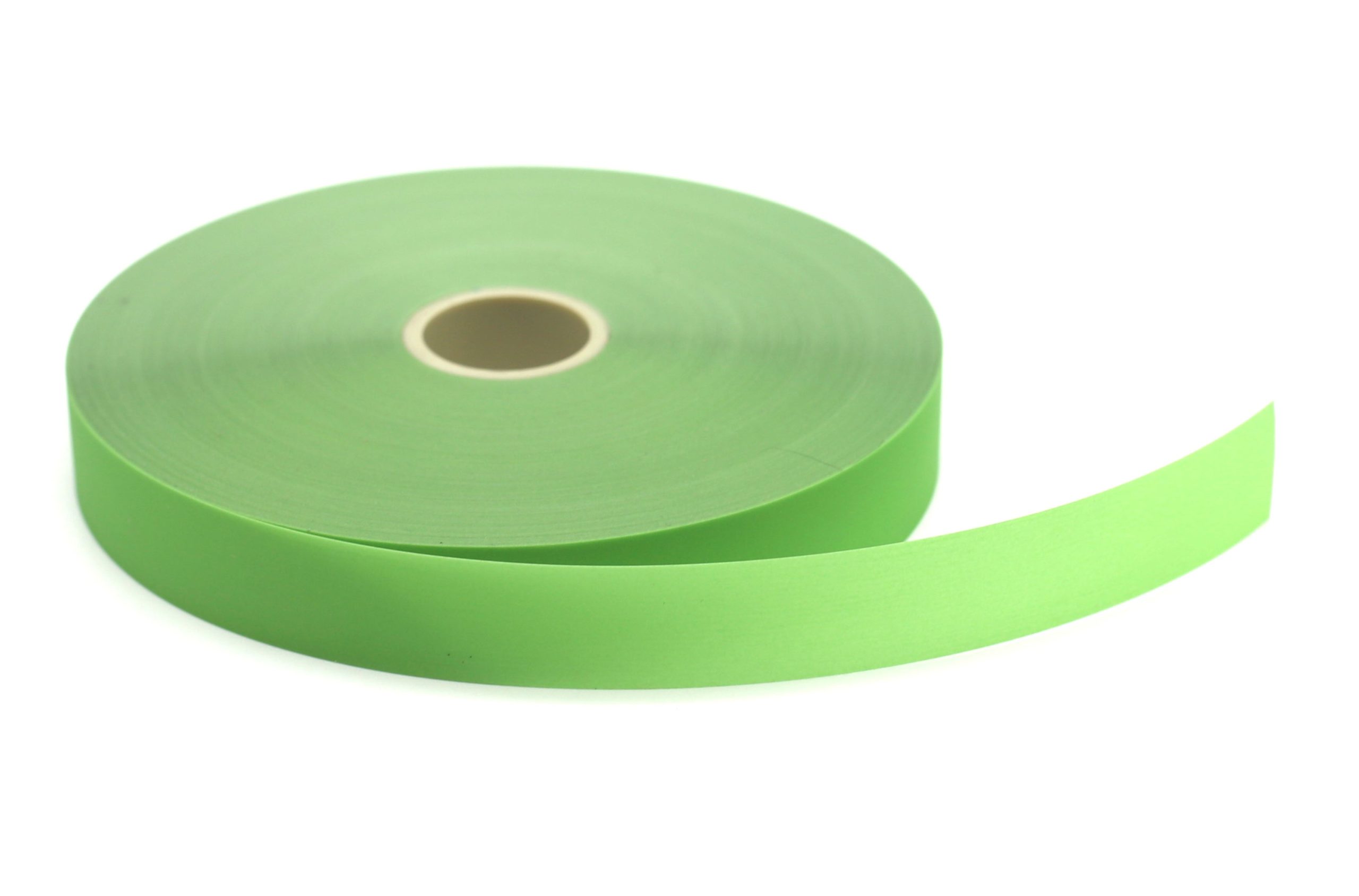

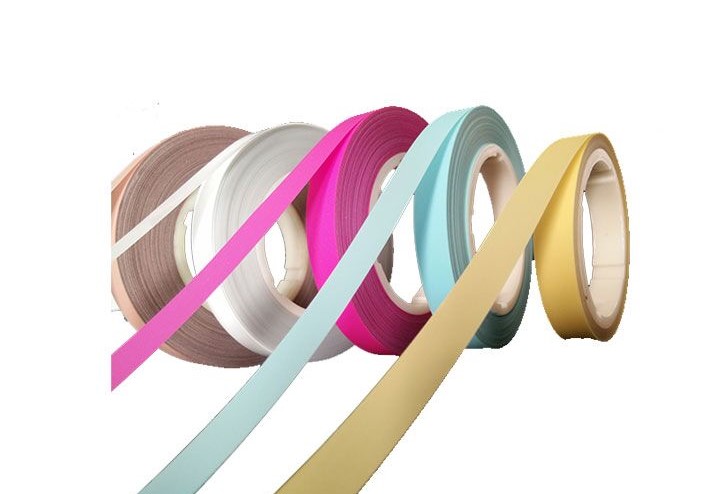

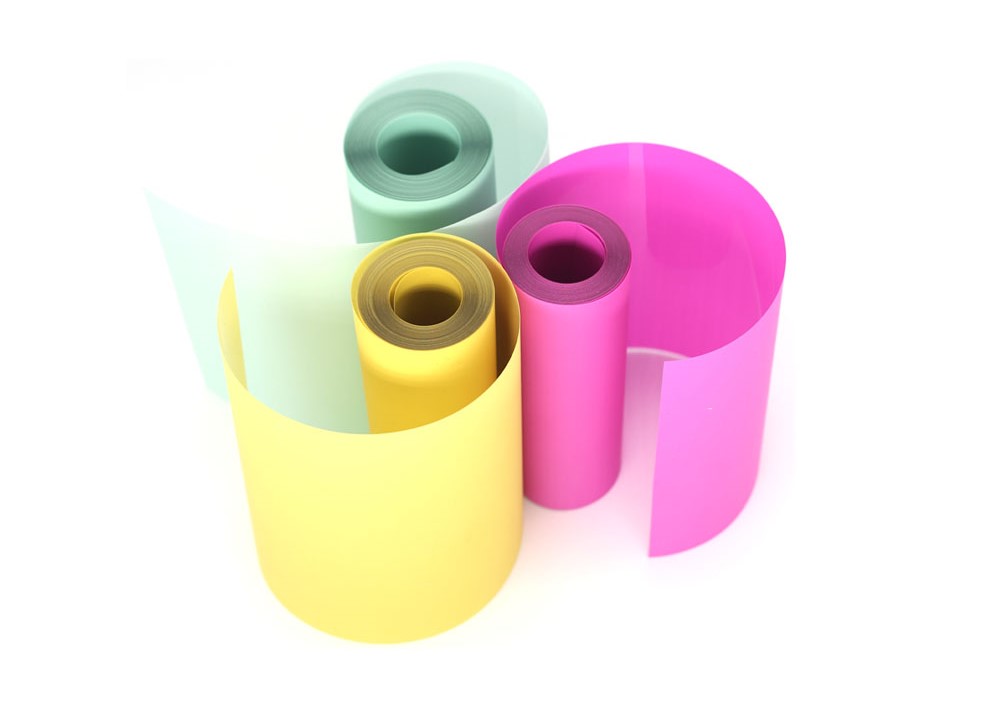

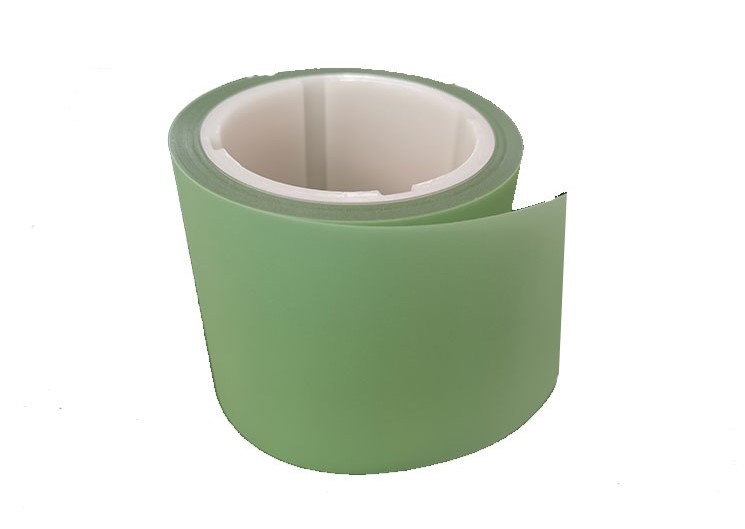

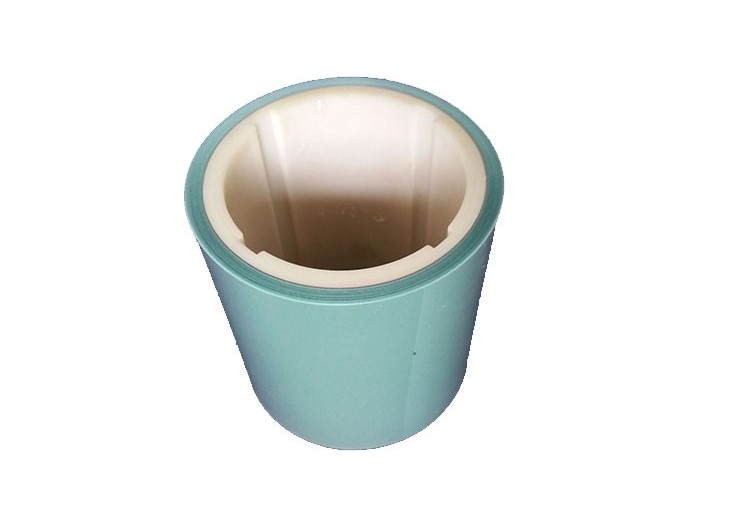

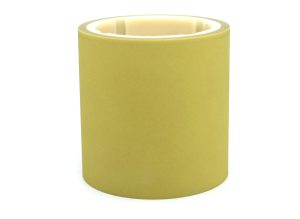

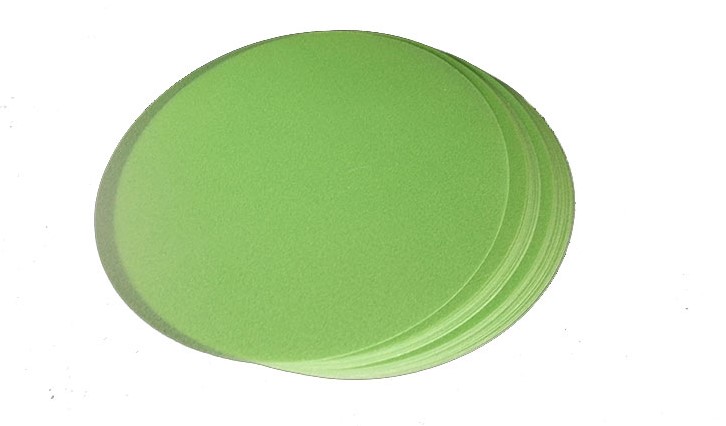

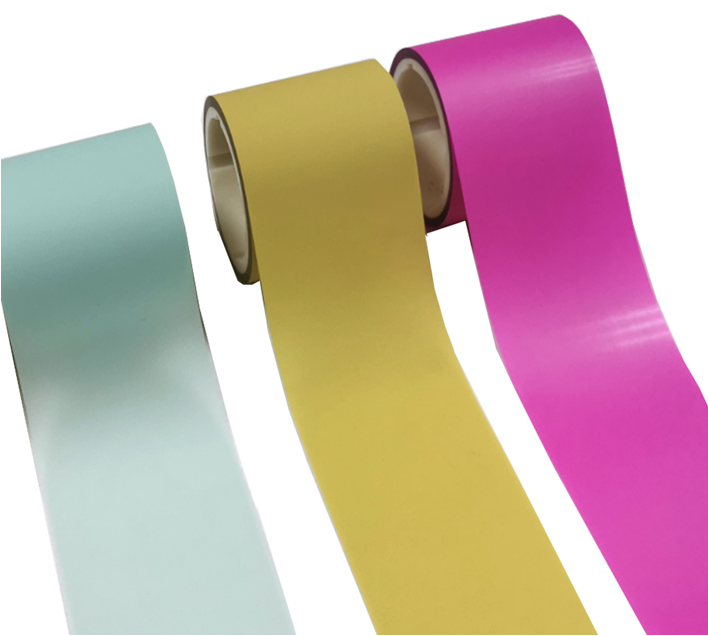

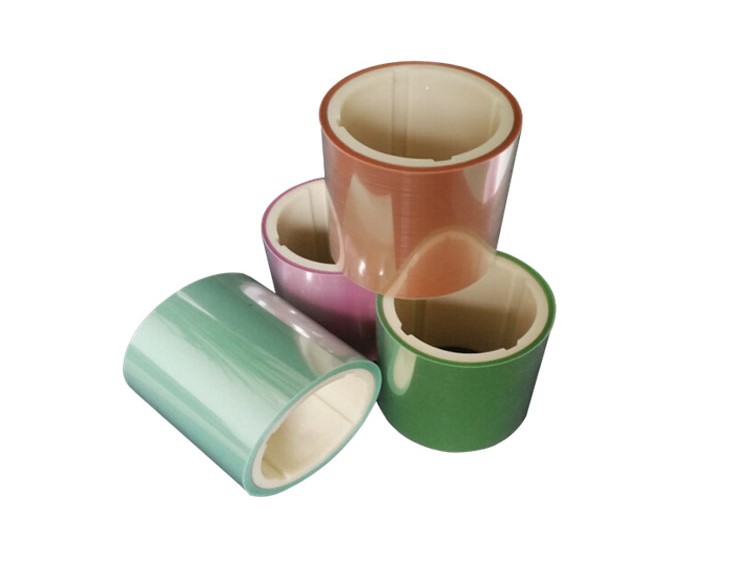

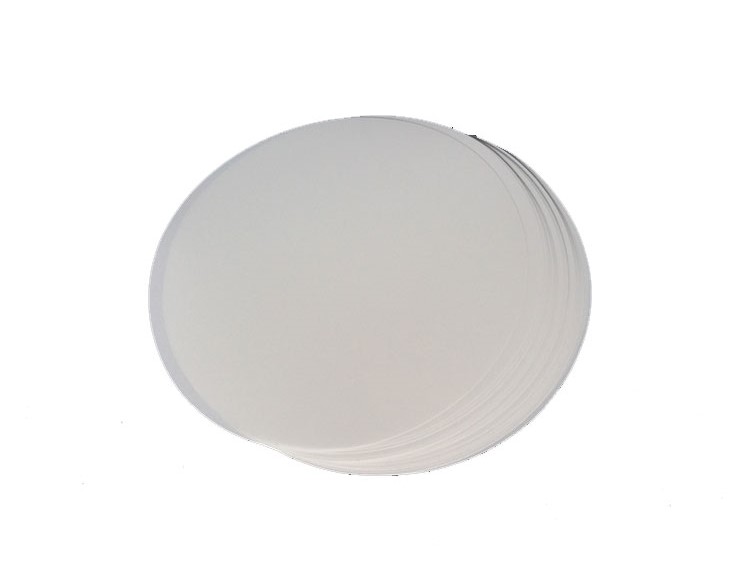

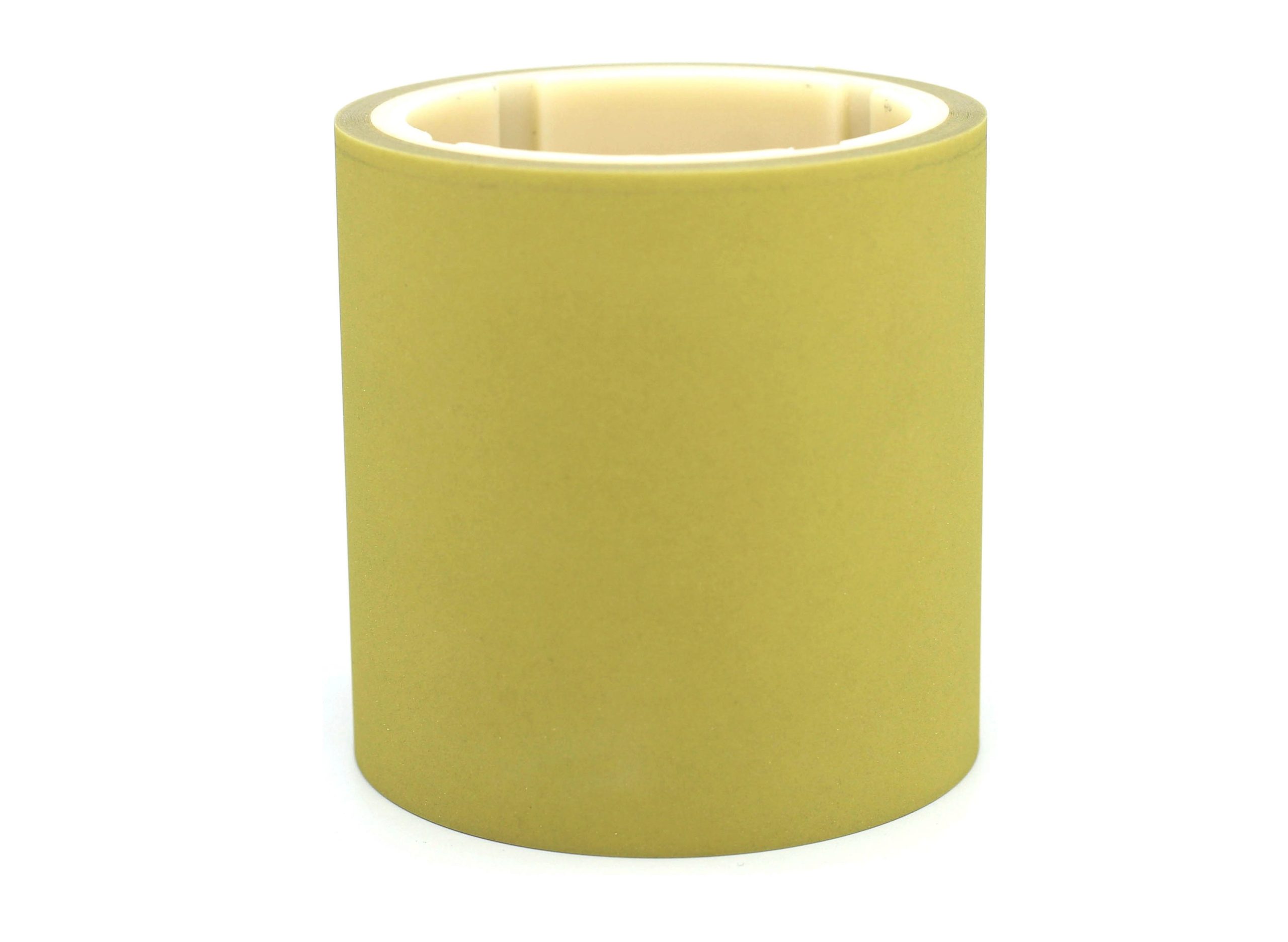

Discs, Sheets, Rolls, Belts Special specifications can be customized. |
[Applications]
 |
 |
 |

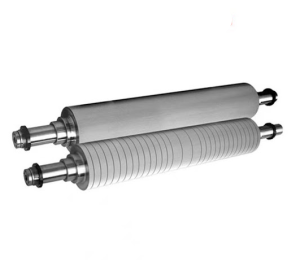

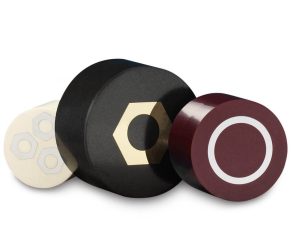

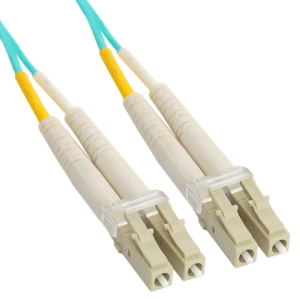

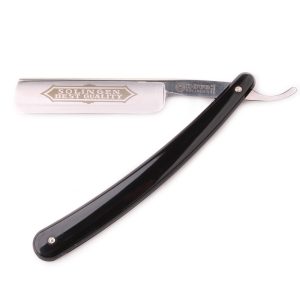

| Fiber Optic Connector | Super Hard Roller | Ceramic Parts |
 |
 |
 |

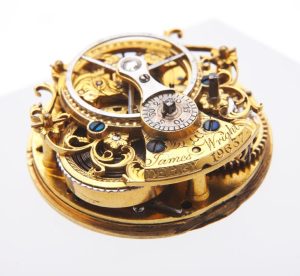

| Watch Parts | Metallography | Electronic Parts |
